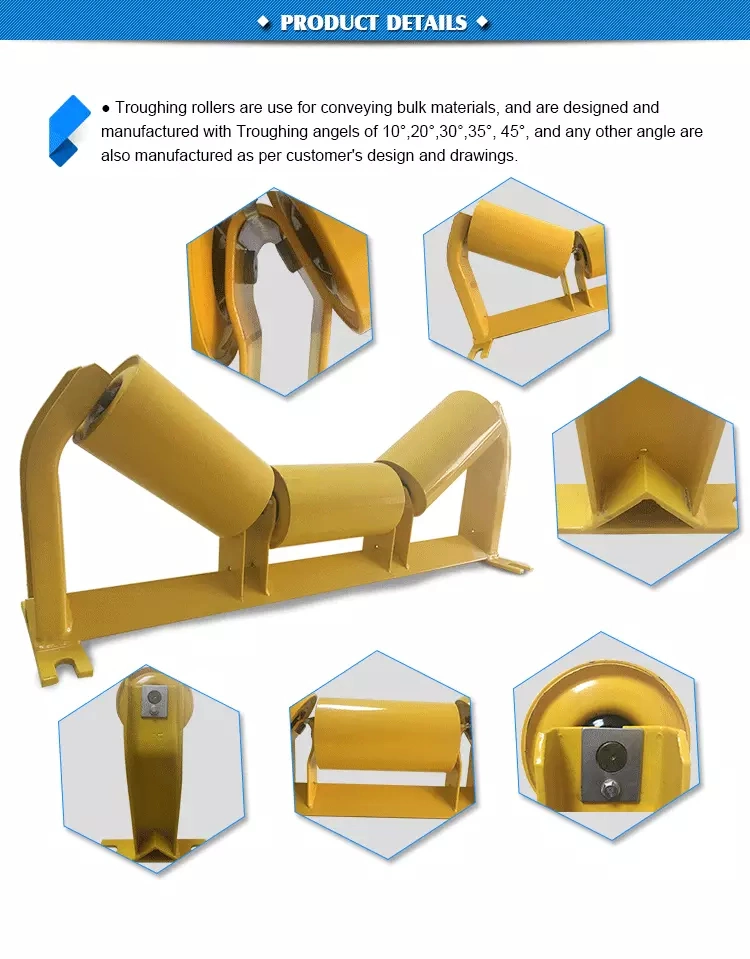

JIS HDPE steel impact/trough/trough/carry/carry/return carrier wing guide rollers for belt conveyor

 Standard DiameterLength scope ( mm)Bearings Type(Min~Max)Idler\'s Shell Wall ThicknessmmInch63.52 1/2150~35002043.0mm~3.75mm763150~3500204 2053.0mm~4.0mm893 1/3150~3500204 2053.0mm~4.0mm1024150~3500204 205 3053.5mm~4.0mm1084 1/4150~3500204 205 305 3063.5mm~4.0mm1144 1/2150~3500205 206 305 3063.5mm~4.5mm1275150~3500204 205

Featured Products

JIS HDPE Steel Impact /Trough/Troughing/Carry/Carrying/Return Carrier Wing Guide Roller for Belt Conveyor
JIS HDPE Steel Impact /Trough/Troughing/Carry/Carrying/Return Carrier Wing Guide Roller for Belt ConveyorJIS HDPE Steel Impact /Trough/Troughing/Carry/Carrying/Return Carrier Wing Guide Roller for Belt ConveyorJIS HDPE Steel Impact /Trough/Troughing/Carry/Carrying/Return Carrier Wing Guide Roller for Belt Conveyor
JIS HDPE Steel Impact /Trough/Troughing/Carry/Carrying/Return Carrier Wing Guide Roller for Belt Conveyor
JIS HDPE Steel Impact /Trough/Troughing/Carry/Carrying/Return Carrier Wing Guide Roller for Belt Conveyor
JIS HDPE Steel Impact /Trough/Troughing/Carry/Carrying/Return Carrier Wing Guide Roller for Belt Conveyor
JIS HDPE Steel Impact /Trough/Troughing/Carry/Carrying/Return Carrier Wing Guide Roller for Belt Conveyor

Standard DiameterLength scope ( mm)Bearings Type
(Min~Max)
Idler's Shell Wall Thickness
mmInch
63.52 1/2150~35002043.0mm~3.75mm
763150~3500204 2053.0mm~4.0mm
893 1/3150~3500204 2053.0mm~4.0mm
1024150~3500204 205 3053.5mm~4.0mm
1084 1/4150~3500204 205 305 3063.5mm~4.0mm
1144 1/2150~3500205 206 305 3063.5mm~4.5mm
1275150~3500204 205 305 3063.5mm~4.5mm
1335 1/4150~3500205 206 207 305 3063.5mm~4.5mm
1405 1/2150~3500205 206 207 305 3063.5mm~4.5mm
1526150~3500205 206 207 305 306 307 3084.0mm~4.5mm
1596 1/4150~3500205 206 207 305 306 307 3084.0mm~4.5mm
1656 1/2150~3500207 305 306 307 3084.5mm~6.0mm
177.87150~3500207 306 307 308 3094.5mm~6.0mm
190.77 1/2150~3500207 306 307 308 3094.5mm~6.0mm
1947 5/8150~3500207 307 308 309 3104.5mm~6.0mm
2198 5/8150~3500308 309 3104.5mm~6.0mm
